KRYTAR, Inc. has announced a new 2-way Power Divider offering high-performance over the broadband frequency range of 0.5 to 10.0 GHz (UHF- through X-Bands) in a compact package.
The new MLDD (matched-line directional divider) 2-way power divider offers the ultimate solution for emerging RF/Microwave designs, and test and measurement applications including SATCOM, wireless communications, radar, and more.
KRYTAR’s technological advances provide excellent operating performance of this new 2-way power divider. Model 6005100 covers the full frequency range from 0.5 to 10.0 GHz with >19 dB Isolation and ±0.2 dB of maximum Amplitude Tracking, with maximum Phase Tracking is ±4 degrees. The 2-way divider exhibits Insertion Loss of <1.0 dB across the full frequency range. Maximum VSWR is 1.40. Input power rating is 10 watts with 2:1 load VSWRs. Units with tighter Amplitude and Phase Tracking specifications can be supplied.

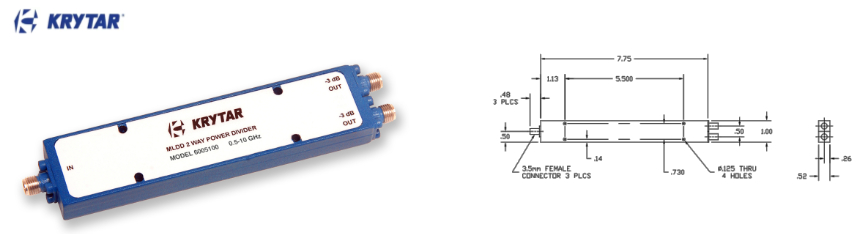

KRYTAR’s new Model 6005100 power divider offers excellent solutions for broadband and multi-frequency applications in a single package. The power divider’s compact package measures just 7.75 inches (L) x 1.00 inches (W) x 0.52 inches (H), weighs only 7-ounces, and comes with standard 3.5-mm coaxial female connectors.
KRYTAR MLDD 2-way Power Dividers are a new class of patented directional devices. Targeting applications including wireless communications, radar, electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of MLDD dividers with excellent performance over ultra-broadband frequencies. The directional couplers can be manufactured to meet ridged military specifications.
KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications. A data sheet with specifications and package outline drawing is available via KRYTAR’s web site.
