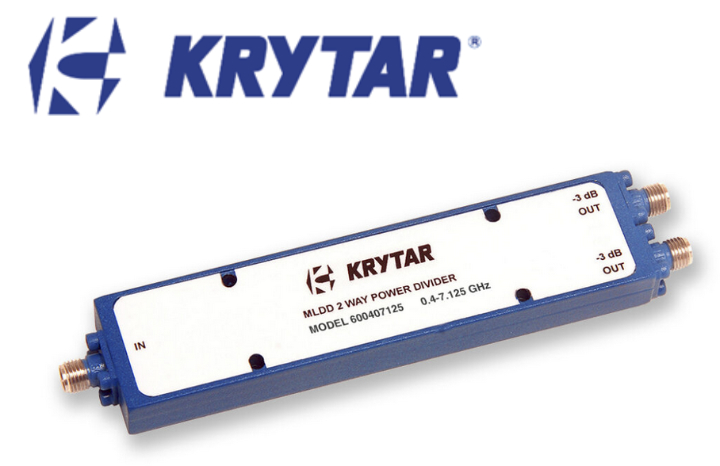

KRYTAR, Inc. has introduced an MLDD 2-way Power Divider that offers excellent performance over the frequency range of 0.4 to 7.125 GHz (L- through C-bands) in a compact package — this new power divider offers the ultimate solution for emerging designs and test and measurement applications including SATCOM, mmWave, 5G, radar and more.
KRYTAR’s technological advances provide excellent operating performance of this new 2-way matched-line directional divider (MLDD). Model 600407125 covers the full frequency range from 0.4 to 7.125 GHz with >15.0 dB Isolation and ±0.2 dB of maximum Amplitude Tracking, with maximum Phase Tracking of ±3 degrees.
The 2-way divider exhibits Insertion Loss of <1.0 dB across the full frequency range. Maximum VSWR is 1.6. Input power rating is 10 watts with 2:1 load VSWRs. Units with tighter Amplitude and Phase Tracking specifications can be supplied.
This new Power Divider is a compact package measuring just 7.75 inches (L) x 1.00 inches (W) x 0.52 inches (H), weighs only 7-ounces, and comes with standard 3.5-mm coaxial female connectors.
Specifications for the full line of KRYTAR 2-Way Power Dividers can be found on the company’s website: Power Dividers
KRYTAR’s new Model 600407125 Power Divider offers full frequency coverage in a single package and provides superior performance targeting broadband electronic warfare (EW) systems and complex switch-matrix applications. KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with excellent performance over ultra-broadband frequencies. KRYTAR MLDD 2-way Power Dividers are a new class of patented directional devices. These directional dividers can be manufactured to meet ridged military specifications.
KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications. A data sheet with specifications and package outline drawing is available via KRYTAR’s website.
KRYTAR, Inc., founded in 1975, is a privately-owned corporation specializing in the design and manufacture of ultra broadband microwave components and test equipment for commercial and military applications. The KRYTAR product line covers DC to 110 GHz and includes directional couplers and detectors, 3 dB hybrids, MLDD power dividers/combiners, terminations, coaxial adapters, bias tees, beamformers and a power meter and power sensors. KRYTAR microwave components are manufactured in full compliance with the EU RoHS-6 Environmental Requirements.
